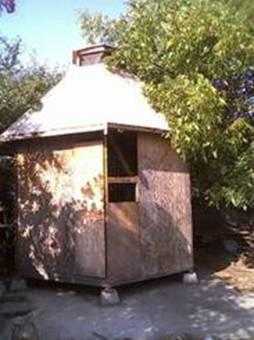

Stepping up the “room
insert” scale a little, began with a hexagonal deck frame made
from 2x8's with sides 6' long, and with internal members just under
4'. The total area is 93.4 sq.ft. It is 10'4-3/4" from side to
side, and 12' from point to point.
There was actually
room for storage or sleeping, and a small built-in desk area on an
elevated platform. Other built-in features included a workbench a
couple of “downstairs” sleeping lofts, and a small
storage room that could be converted into a bathroom.

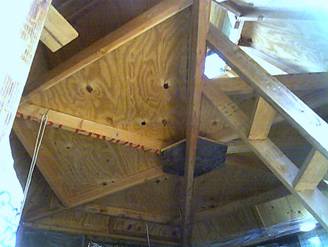

The original roof
frame was made out of wood, based upon the hexagonal deck structure
described earlier. The tricky part was cutting pieces so they would
form a shallow dome. Each piece needed a hump in the middle, and
strange compound angles on each end. Unless you particularly love
problem-solving, leave this one alone (for the benefit of those less
wise, I recommend the precision use of a hand saw.
The
advantage of this was that I could fit clear corrugated plastic to
the triangles and hexagons – another significant challenge.

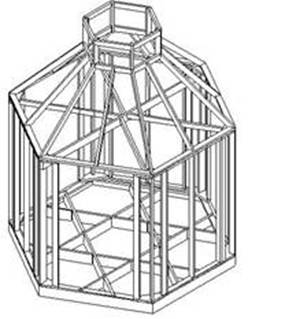

If I were to do this
again, I would do the vertical portion of the frame with six pillars
extending one foot in each direction, at each point. These pillars
would be sheeted with 1-foot-wide strips of plywood on each outer
side, leaving 4-foot-wide openings on each of the six sides. This
would make it possible to join a series of them together to make a
multi-roomed dwelling.
In the structure I
built, some of the floor sections are covered by plywood lids so I
have storage underneath. In some cases the boxes have bottoms on
them, others give direct access to the earth beneath.
I
had begun an indoor well project (see
water)
beneath one of them, but ran into difficulties at a depth of about 30
feet.
